Module: 3.5 | Teeth: 20
Please note: All products are sold individually, even if the image shows multiple items
Module: 3.5 | Teeth: 20
Subject to availability from the Manufacturer
Buy MMSA3.5-20R | Miter Gears
Technical Specification:
MMSA3.5-20R
Precision Grade
JIS 4
Material
SCM415
Gear Teeth
Standard
Heat Treatment
Carburized
Pressure Angle
20°
Tooth Hardness
55-60HRC
Helix Angle
35°
Subject to availability from the Manufacturer
MMSA3.5-20L
Module: 3.5 | Teeth: 20
£101.79 each (0-9)
£91.91 each (10+)
Subject to availability from the Manufacturer

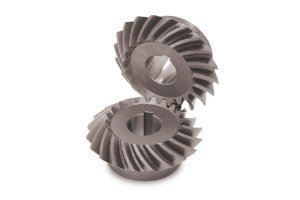

MMSB3.5-20L
Module: 3.5 | Teeth: 20
£101.79 each (0-9)
£91.91 each (10+)
| Mat | Chromoly Steel |
| Module | 3.5 |
| Teeth | 20 |
| Pitch | 70 |
| Bore | 25 |
| Bore2 | 25 keyway&screw hole |
| Bend | 97.11 |
| Surf | 96.68 |
| Keyway | Yes |
| Heat Treatment | Yes |
| Speed | 1 |
| Finish | Standard |
| Spiral | Right |
| Weight | 0.46 |
