Module: 2 | Teeth: 25
Please note: All products are sold individually, even if the image shows multiple items
Module: 2 | Teeth: 25
Subject to availability from the Manufacturer

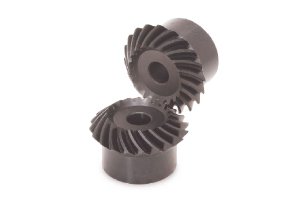

Buy SMS2-25R | Miter Gears
Technical Specification:
SMS2-25R
Precision Grade
JIS 4
Material
S45C
Gear Teeth
Standard
Heat Treatment
Gear teeth induction hardened
Pressure Angle
20°
Tooth Hardness
50-60HRC
Helix Angle
35°
Subject to availability from the Manufacturer
SMS2-25L
Module: 2 | Teeth: 25
£33.97 each (0-9)
£30.67 each (10+)
| Mat | Steel |
| Module | 2 |
| Teeth | 25 |
| Pitch | 50 |
| Bore | 12 |
| Bore2 | 12 |
| Bend | 13.7 |
| Surf | 10.66 |
| Keyway | None |
| Heat Treatment | Yes |
| Speed | 1 |
| Finish | Standard |
| Spiral | Right |
| Weight | 0.21 |
