Module: 1.5 | Teeth: 80
Please note: All products are sold individually, even if the image shows multiple items
Module: 1.5 | Teeth: 80
Subject to availability from the Manufacturer

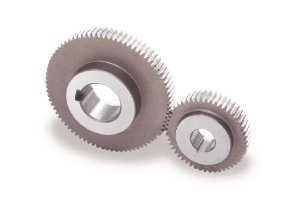

Buy MSGB1.5-80 | Spur Gears
Technical Specification:
MSGB1.5-80
Precision Grade
JIS N5
Gear Teeth
Ground
Heat Treatment
Overall carburizing
Pressure Angle
20°
Tooth Hardness
55 - 60HRC
| Mat | Chromoly Steel |
| Mat2 | SCM415 |
| Module | 1.5 |
| Teeth | 80 |
| Pitch | 120 |
| Bore | 25 |
| Bore2 | 25 with keyway |
| Bend | 269.5 |
| Surf | 493.6 |
| Tooth | High Precision |
| Keyway | Yes |
| Heat Treatment | Yes |
| Weight | 1.355 |
