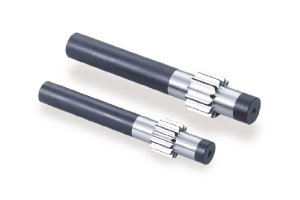

Module: 2 | Teeth: 13
Please note: All products are sold individually, even if the image shows multiple items
Module: 2 | Teeth: 13
Subject to availability from the Manufacturer
Buy SSGS2-13 | Spur Gears
Technical Specification:
SSGS2-13
Precision Grade
JIS N7
Gear Teeth
Ground
Heat Treatment
Thermal refined, tooth surface induction hardened
Pressure Angle
20°
Tooth Hardness
50 - 60HRC
| Mat | Steel |
| Mat2 | S45C |
| Module | 2 |
| Teeth | 13 |
| Pitch | 26 |
| Bore | 0 |
| Bore2 | 0 |
| Bend | 28.6 |
| Surf | 13.28 |
| Tooth | High Precision |
| Keyway | None |
| Heat Treatment | Yes |
| Weight | 0.461 |
